Institutional 270° Hinges - 425XX-270
Impekk’s 270 degree institutional hinges come standard with Hospital tips and knurled non-removable pins. Made to meet ANSI/BHMA standards for commercial applications. Designed for 32 mm inline boring systems for easy installation. All mounting holes are made for # 8 flathead screws. Our hinges for 5/8” or 3/4” panels come in a variety of finishes to meet your project needs. A favorite of the hospitality and GSA market worldwide.
Features
Code
425ARS-270
Finish
Silver Grey
Overlay

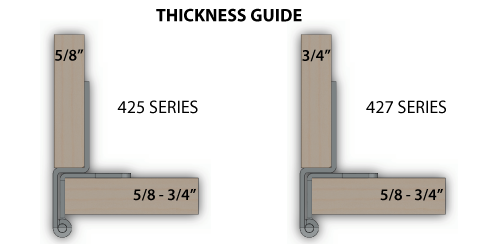

5/8"
Packaging
Box of 50
Angle

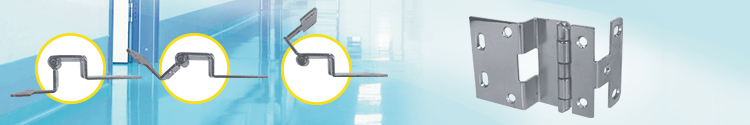

270° opening
Corner Type
Radius
Hole Pattern
32mm system
Material
Steel
Screws
Countersunk #8 screws (not included)
Tip
Hospital tip with knurled non-removable pin
Standards
ANSI/BHMA
Notes
See drawings for examples & measurements
Features
Code
425GAN-270
Finish
Anthracite Grey
Overlay
5/8"
Packaging
Box of 50
Angle
270° opening
Corner Type
Radius
Hole Pattern
32mm system
Material
Steel
Screws
Countersunk #8 screws (not included)
Tip
Hospital tip with knurled non-removable pin
Standards
ANSI/BHMA
Notes
See drawings for examples & measurements
